Ruhrgeb.Ost+Südwestfalen 11B (Reg2) - NRW2_2_SWfDo
https://forum.digitalradio-in-deutschland.de/./viewtopic.php?f=9&t=2801		 Seite 1 von 1
Autor:  Nicoco [ So 31. Aug 2025, 21:27 ]
Betreff des Beitrags:  Ruhrgeb.Ost+Südwestfalen 11B (Reg2) - NRW2_2_SWfDo
Sendestart: 18.12.2025

Sendestandorte:
- Brilon/Allenberg (5 kW; TII 60-16)
- Dortmund/Florianturm (6 kW; TII 60-13)
- Ederkopf (2 kW - ab Februar 2026)
- Hagen-Eilpe (5 kW; TII 60-14)
- Herscheid/Waldberg (6 kW; TII 60-12)
- Hochsauerland/Hunau (4 kW; TII 60-17)
- Meschede/Fernmeldeturm (2,5 kW - ab Februar 2026)
- Siegen-Süd (3,5 kW; TII 60-19)

Programme:
- Metropol FM

Lokalsender:
- Antenne Unna
- ENNEPE RUHR
- Hellweg Radio
- Lippewelle Hamm
- Radio 91,2
- Radio Bochum
- Radio Hagen
- Radio MK
- Radio Sauerland
- Radio Siegen

=> Vergebene Plätze 11/16

Aktuelle Konfiguration:
Code:
Ensemble:
0x1004 NRW2_2_SWfDo [ NRW2_2 ] ECC: 0xE0, UTC 60 min, INT: 1, alarm announcements: 0
Services (11):
0x102B Metropol FM [ Metropol ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: No
AudioComponent (primary), SCIdS: 0, Label: 'Metropol FM' [ 'Metropol' ], ASCTy: 0x3F (AAC)
      SubChId: 12, Language: Unknown/NA, StartCU: 792, NumCU: 54, EEP 3-A, Coderate: 1/2, Bitrate: 72kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x149C ENNEPE RUHR [ EN RUHR ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [03]
AudioComponent (primary), SCIdS: 0, Label: 'ENNEPE RUHR' [ 'EN RUHR' ], ASCTy: 0x3F (AAC)
      SubChId: 3, Language: Unknown/NA, StartCU: 144, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x159C Radio Hagen [ Radio Ha ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [04]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Hagen' [ 'Radio Ha' ], ASCTy: 0x3F (AAC)
      SubChId: 4, Language: Unknown/NA, StartCU: 216, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x169C Lippewelle Hamm [ Lippewel ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [05]
AudioComponent (primary), SCIdS: 0, Label: 'Lippewelle Hamm' [ 'Lippewel' ], ASCTy: 0x3F (AAC)
      SubChId: 5, Language: Unknown/NA, StartCU: 288, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x179C Radio Sauerland [ Sauerlnd ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [06]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Sauerland' [ 'Sauerlnd' ], ASCTy: 0x3F (AAC)
      SubChId: 6, Language: Unknown/NA, StartCU: 360, NumCU: 108, EEP 1-A, Coderate: 1/4, Bitrate: 72kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x189C Radio Siegen [ Siegen ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [07]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Siegen' [ 'Siegen' ], ASCTy: 0x3F (AAC)
      SubChId: 7, Language: Unknown/NA, StartCU: 468, NumCU: 108, EEP 1-A, Coderate: 1/4, Bitrate: 72kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x199C Hellweg Radio [ Hellweg ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [08]
AudioComponent (primary), SCIdS: 0, Label: 'Hellweg Radio' [ 'Hellweg ' ], ASCTy: 0x3F (AAC)
      SubChId: 8, Language: Unknown/NA, StartCU: 576, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1A9C Antenne Unna [ Ant Unna ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [0A]
AudioComponent (primary), SCIdS: 0, Label: 'Antenne Unna' [ 'Ant Unna' ], ASCTy: 0x3F (AAC)
      SubChId: 9, Language: Unknown/NA, StartCU: 648, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1B9C Radio MK [ Radio MK ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [09]
AudioComponent (primary), SCIdS: 0, Label: 'Radio MK' [ 'Radio MK' ], ASCTy: 0x3F (AAC)
      SubChId: 10, Language: Unknown/NA, StartCU: 720, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1D9B Radio Bochum [ Bochum ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [01]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Bochum' [ 'Bochum' ], ASCTy: 0x3F (AAC)
      SubChId: 1, Language: Unknown/NA, StartCU: 0, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1E9B Radio 91.2 [ Radio912 ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [02]
AudioComponent (primary), SCIdS: 0, Label: 'Radio 91.2' [ 'Radio912' ], ASCTy: 0x3F (AAC)
      SubChId: 2, Language: Unknown/NA, StartCU: 72, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]


(Stand: 02.02.2026)
Autor:  Nicoco [ Do 11. Dez 2025, 19:10 ]
Betreff des Beitrags:  Re: Ruhrgeb.Ost+Südwestfalen 11B - Region 2 (DO/SWF)

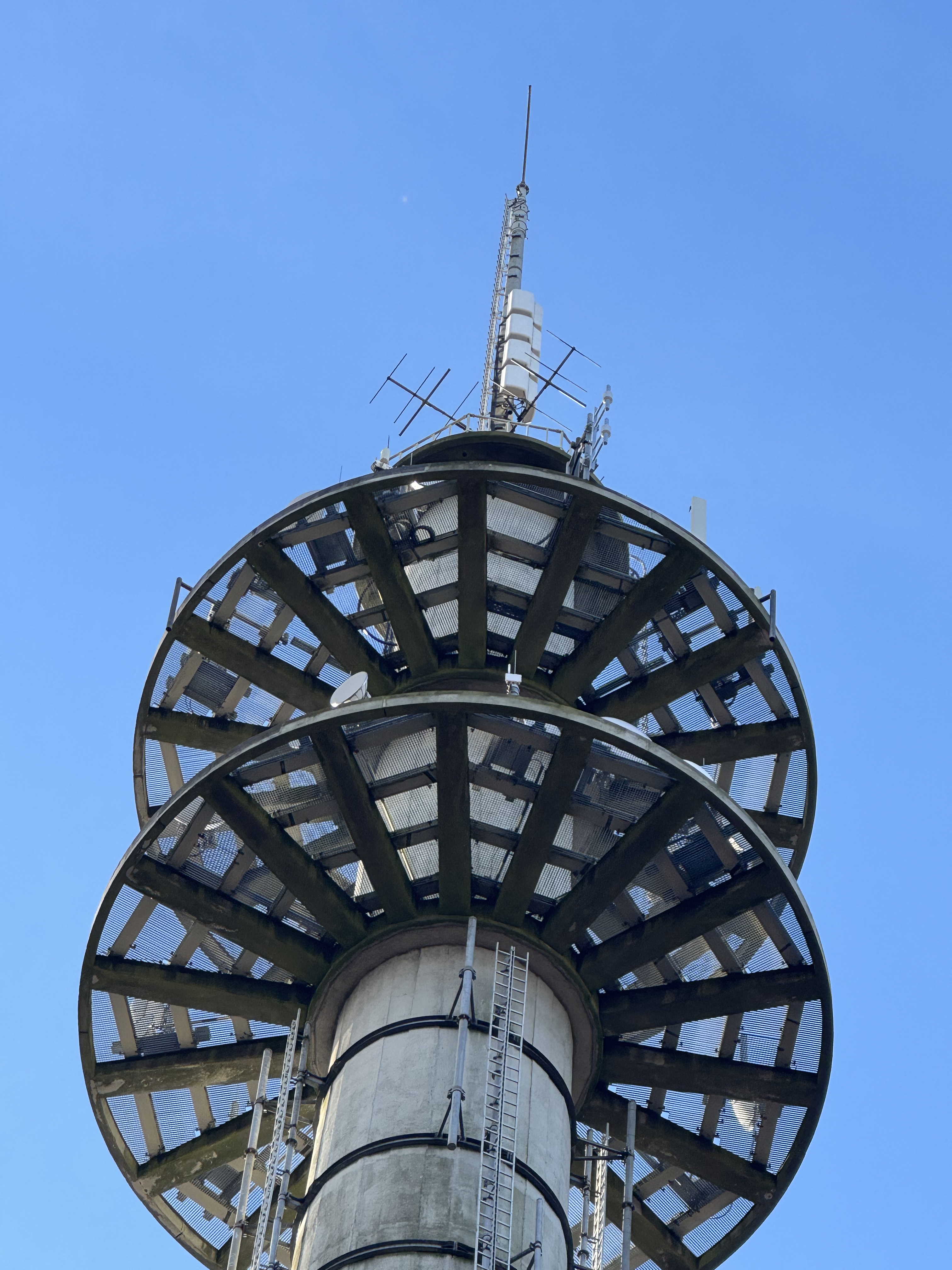

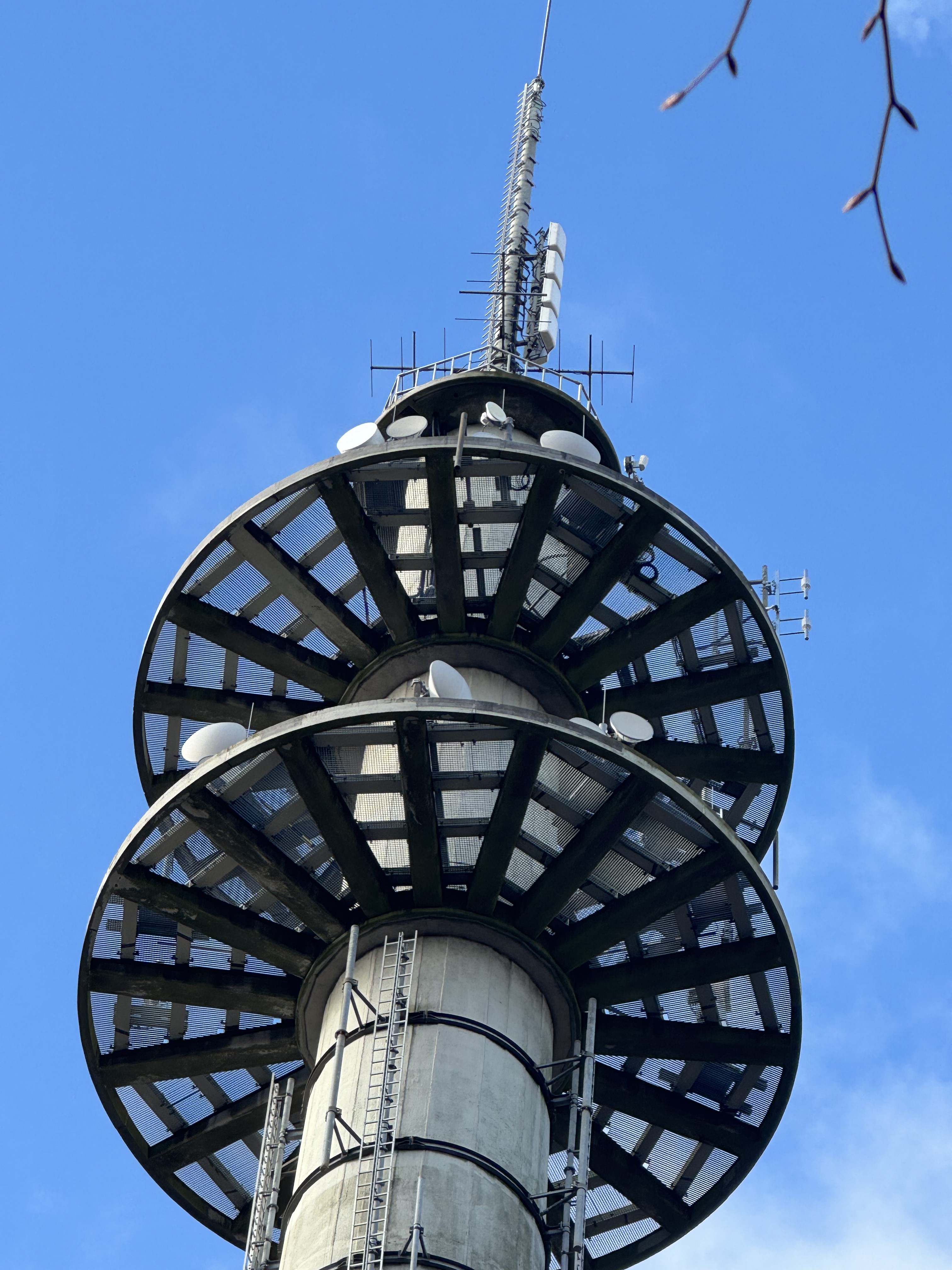

Hagen hat seine DAB-Antenne erhalten, jedoch wurde dort offensichtlich eine provisorische Antenne installiert, auf der Plattform unterhalb von DVB-T und UKW.
Gemäß Koordinierung und EMF-Eintrag, sollte die DAB-Antenne eigentlich oben an die Spitze über die DVB-T-Antennen. Der Platz wäre auch vorhanden.
Nur scheint es irgendwelche unvorhergesehenen Probleme gegeben zu haben, sodass kurzfristig umgeplant wurde.
In Schöppingen war damals die Steigleiter defekt, was die Installation verzögerte und in einer provisorischen Lösung resultierte. Gründe was in Hagen schiefgelaufen ist, sind mir noch nicht bekannt.
Theoretisch müsste in den kommenden Tagen die Standortbescheinigung noch für die provisorische Antenne aktualisiert werden, damit Hagen so auf Sendung gehen kann.
Das Dipol dürfte grob Richtung 0-10° zeigen auf ca. 70m, abwarten was der EMF-Eintrag angeben wird. Und durch den Beton geht nach hinten relativ wenig raus, wobei der Riegerberg nach Süden sowieso keine sonderlich gute Reichweite hat.
Dateianhang:
Hagen_provDAB-1.jpg [ 4.92 MiB | 750-mal betrachtet ]

Dateianhang:
Hagen_provDAB-2.jpg [ 4.88 MiB | 750-mal betrachtet ]
Autor:  Nicoco [ Do 18. Dez 2025, 12:09 ]
Betreff des Beitrags:  Re: Ruhrgeb.Ost+Südwestfalen 11B - Region 2 (DO/SWF)
Ebenfalls gestartet

Code:
Ensemble:
0x1004 NRW2_2_SWfDo [ NRW2_2 ] ECC: 0xE0, UTC 60 min, INT: 1, alarm announcements: 0
Services (11):
0x149C ENNEPE RUHR [ EN RUHR ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [03]
AudioComponent (primary), SCIdS: 0, Label: 'ENNEPE RUHR' [ 'EN RUHR' ], ASCTy: 0x3F (AAC)
      SubChId: 3, Language: Unknown/NA, StartCU: 144, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x159C Radio Hagen [ Radio Ha ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [04]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Hagen' [ 'Radio Ha' ], ASCTy: 0x3F (AAC)
      SubChId: 4, Language: Unknown/NA, StartCU: 216, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x169C Lippewelle Hamm [ Lippewel ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [05]
AudioComponent (primary), SCIdS: 0, Label: 'Lippewelle Hamm' [ 'Lippewel' ], ASCTy: 0x3F (AAC)
      SubChId: 5, Language: Unknown/NA, StartCU: 288, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x179C Radio Sauerland [ Sauerlnd ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [06]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Sauerland' [ 'Sauerlnd' ], ASCTy: 0x3F (AAC)
      SubChId: 6, Language: Unknown/NA, StartCU: 360, NumCU: 108, EEP 1-A, Coderate: 1/4, Bitrate: 72kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x189C Radio Siegen [ RaSiegen ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [07]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Siegen' [ 'RaSiegen' ], ASCTy: 0x3F (AAC)
      SubChId: 7, Language: Unknown/NA, StartCU: 468, NumCU: 108, EEP 1-A, Coderate: 1/4, Bitrate: 72kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x199C Hellweg Radio [ Hellweg ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [08]
AudioComponent (primary), SCIdS: 0, Label: 'Hellweg Radio' [ 'Hellweg ' ], ASCTy: 0x3F (AAC)
      SubChId: 8, Language: Unknown/NA, StartCU: 576, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1A9C Antenne Unna [ Ant Unna ] ECC: 0xE0, Country: Germany, PTy: Current Affairs (static), Announcements: Traffic News, Cluster IDs [0A]
AudioComponent (primary), SCIdS: 0, Label: 'Antenne Unna' [ 'Ant Unna' ], ASCTy: 0x3F (AAC)
      SubChId: 9, Language: Unknown/NA, StartCU: 648, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1B9C Radio MK [ Radio MK ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [09]
AudioComponent (primary), SCIdS: 0, Label: 'Radio MK' [ 'Radio MK' ], ASCTy: 0x3F (AAC)
      SubChId: 10, Language: Unknown/NA, StartCU: 720, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1C9C Radio Vest [ Vest ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [0B]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Vest' [ 'Vest' ], ASCTy: 0x3F (AAC)
      SubChId: 11, Language: Unknown/NA, StartCU: 792, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1D9B Radio Bochum [ Bochum ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [01]
AudioComponent (primary), SCIdS: 0, Label: 'Radio Bochum' [ 'Bochum' ], ASCTy: 0x3F (AAC)
      SubChId: 1, Language: Unknown/NA, StartCU: 0, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
0x1E9B Radio 91,2 [ Radio912 ] ECC: 0xE0, Country: Germany, PTy: Pop Music (static), Announcements: Traffic News, Cluster IDs [02]
AudioComponent (primary), SCIdS: 0, Label: 'Radio 91,2' [ 'Radio912' ], ASCTy: 0x3F (AAC)
      SubChId: 2, Language: Unknown/NA, StartCU: 72, NumCU: 72, EEP 3-A, Coderate: 1/2, Bitrate: 96kbps
            UserApp 1/1: Label: '' [ '' ], UAType: 0x2 (SlideShow), X-PAD AppTy: 12, DSCTy: 0x3C (MOT), DG: 0, Data (2) [0C3C]
Autor:  Nicoco [ Do 18. Dez 2025, 16:30 ]
Betreff des Beitrags:  Re: Ruhrgeb.Ost+Südwestfalen 11B - Region 2 (DO/SWF)
Alle Programme bis auf Radio Sauerland und Radio Siegen senden nun mit 96 kbps.
Sauerland und Siegen dagegen mit EEP-1A, bis Meschede und Ederkopf im Januar aufgeschaltet werden.
Autor:  Nicoco [ Do 18. Dez 2025, 20:10 ]
Betreff des Beitrags:  Re: Ruhrgeb.Ost+Südwestfalen 11B - Region 2 (DO/SWF)
* Zwischenstand zu den Zusatzdiensten *
- Antenne Unna: DL nein; DL+ nein; SLS nein
- ENNEPE RUHR: DL ja; DL+ ja; SLS ja
- Hellweg Radio: DL nein; DL+ nein; SLS nein
- Lippewelle Hamm: DL nein; DL+ nein; SLS nein
- Radio 91,2: DL nein; DL+ nein; SLS nein
- Radio Bochum: DL ja ; DL+ ja; SLS ja
- Radio Hagen: DL ja ; DL+ ja; SLS ja
- Radio MK: DL nein; DL+ nein; SLS nein
- Radio Sauerland: DL ja ; DL+ ja; SLS ja
- Radio Siegen: DL ja; DL+ nein; SLS ja

Dateianhänge:
EN RUHR.JPG
EN RUHR.JPG [ 20.16 KiB | 370-mal betrachtet ]
Bochum.JPG [ 16.96 KiB | 412-mal betrachtet ]
Radio_Ha.JPG [ 16.47 KiB | 412-mal betrachtet ]
Sauerlnd.JPG [ 17.81 KiB | 412-mal betrachtet ]
RaSiegen.JPG [ 9.43 KiB | 412-mal betrachtet ]
